spring batch进阶-基于RabbitMQ远程分区Step

spring batch进阶-基于RabbitMQ远程分区Step

前言碎语

关于spring batch概念及基本使用,可移步《spring batch精选,一文吃透spring batch,本文主要内容为spring batch的进阶内容,也就是spring batch的扩展(Multithreaded Step 多线程执行一个Step;Parallel Step 通过多线程并行执行多个Step;Remote Chunking 在远端节点上执行分布式Chunk作;Partitioning Step 对数据进行分区,并分开执行;)的Partitioning Step。本文构建的实例可为主服务,从服务,主从混用等模式,可以大大提高spring batch在单机处理时的时效。

本文项目源码:https://gitee.com/kailing/partitionjob

spring batch远程分区Step的原理

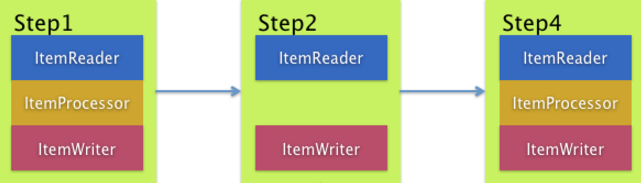

master节点将数据根据相关逻辑(ID,hash),拆分成一段一段要处理的数据集,然后将数据集放到消息中间件中(ActiveMQ,RabbitMQ ),从节点监听到消息,获取消息,读取消息中的数据集处理并发回结果。如下图:

下面按原理分步骤实施,完成spring batch的远程分区实例

 第一步,首先引入相关依赖

见:https://gitee.com/kailing/partitionjob/blob/master/pom.xml

分区job主要依赖为:spring-batch-integration,提供了远程通讯的能力

第二步,Master节点数据分发

    @Profile({"master", "mixed"})
    @Bean
    public Job job(@Qualifier("masterStep") Step masterStep) {
        return jobBuilderFactory.get("endOfDayjob")
                .start(masterStep)
                .incrementer(new BatchIncrementer())
                .listener(new JobListener())
                .build();
    }

    @Bean("masterStep")
    public Step masterStep(@Qualifier("slaveStep") Step slaveStep,
                           PartitionHandler partitionHandler,
                           DataSource dataSource) {
        return stepBuilderFactory.get("masterStep")
                .partitioner(slaveStep.getName(), new ColumnRangePartitioner(dataSource))
                .step(slaveStep)
                .partitionHandler(partitionHandler)
                .build();
    }

master节点关键部分是,他的Step需要设置从节点Step的Name,和一个数据分区器,数据分区器需要实现Partitioner接口,它返回一个Map<String, ExecutionContext>的数据结构,这个结构完整的描述了每个从节点需要处理的分区片段。ExecutionContext保存了从节点要处理的数据边界,当然,ExecutionContext里的参数是根据你的业务来的,我这里,已数据ID为边界划分了每个区。具体的Partitioner实现如下:

/**
 * Created by kl on 2018/3/1.
 * Content :根据数据ID分片
 */
public class ColumnRangePartitioner implements Partitioner {
    private JdbcOperations jdbcTemplate;
    ColumnRangePartitioner(DataSource dataSource){
        this.jdbcTemplate = new JdbcTemplate(dataSource);
    }
    @Override
    public Map<String, ExecutionContext> partition(int gridSize) {
        int min = jdbcTemplate.queryForObject("SELECT MIN(arcid) from  kl_article", Integer.class);
        int max = jdbcTemplate.queryForObject("SELECT MAX(arcid) from  kl_article", Integer.class);
        int targetSize = (max - min) / gridSize + 1;
        Map<String, ExecutionContext> result = new HashMap<String, ExecutionContext>();
        int number = 0;
        int start = min;
        int end = start + targetSize - 1;

        while (start <= max) {
            ExecutionContext value = new ExecutionContext();
            result.put("partition" + number, value);

            if (end >= max) {
                end = max;
            }
            value.putInt("minValue", start);
            value.putInt("maxValue", end);
            start += targetSize;
            end += targetSize;
            number++;
        }
        return result;
    }
}

第三步,Integration配置

spring batch Integration提供了远程分区通讯能力,Spring Integration拥有丰富的通道适配器(例如JMS和AMQP),基于ActiveMQ,RabbitMQ等中间件都可以实现远程分区处理。本文使用RabbitMQ来做为通讯的中间件。关于RabbitMQ的安装等不在本篇范围,下面代码描述了如何配置MQ连接,以及spring batch分区相关队列,消息适配器等。

/**
 * Created by kl on 2018/3/1.
 * Content :远程分区通讯
 */
@Configuration
@ConfigurationProperties(prefix = "spring.rabbit")
public class IntegrationConfiguration {
    private String host;
    private Integer port=5672;
    private String username;
    private String password;
    private String virtualHost;
    private int connRecvThreads=5;
    private int channelCacheSize=10;

    @Bean
    public ConnectionFactory connectionFactory() {
        CachingConnectionFactory connectionFactory = new CachingConnectionFactory(host, port);
        connectionFactory.setUsername(username);
        connectionFactory.setPassword(password);
        connectionFactory.setVirtualHost(virtualHost);
        ThreadPoolTaskExecutor executor = new ThreadPoolTaskExecutor();
        executor.setCorePoolSize(connRecvThreads);
        executor.initialize();
        connectionFactory.setExecutor(executor);
        connectionFactory.setPublisherConfirms(true);
        connectionFactory.setChannelCacheSize(channelCacheSize);
        return connectionFactory;
    }
    @Bean
    public MessagingTemplate messageTemplate() {
        MessagingTemplate messagingTemplate = new MessagingTemplate(outboundRequests());
        messagingTemplate.setReceiveTimeout(60000000l);
        return messagingTemplate;
    }
    @Bean
    public DirectChannel outboundRequests() {
        return new DirectChannel();
    }
    @Bean
    @ServiceActivator(inputChannel = "outboundRequests")
    public AmqpOutboundEndpoint amqpOutboundEndpoint(AmqpTemplate template) {
        AmqpOutboundEndpoint endpoint = new AmqpOutboundEndpoint(template);
        endpoint.setExpectReply(true);
        endpoint.setOutputChannel(inboundRequests());
        endpoint.setRoutingKey("partition.requests");
        return endpoint;
    }
    @Bean
    public Queue requestQueue() {
        return new Queue("partition.requests", false);
    }

    @Bean
    @Profile({"slave","mixed"})
    public AmqpInboundChannelAdapter inbound(SimpleMessageListenerContainer listenerContainer) {
        AmqpInboundChannelAdapter adapter = new AmqpInboundChannelAdapter(listenerContainer);
        adapter.setOutputChannel(inboundRequests());
        adapter.afterPropertiesSet();
        return adapter;
    }

    @Bean
    public SimpleMessageListenerContainer container(ConnectionFactory connectionFactory) {
        SimpleMessageListenerContainer container = new SimpleMessageListenerContainer(connectionFactory);
        container.setQueueNames("partition.requests");
        container.setAutoStartup(false);
        return container;
    }

    @Bean
    public PollableChannel outboundStaging() {
        return new NullChannel();
    }

    @Bean
    public QueueChannel inboundRequests() {
        return new QueueChannel();
    }
第四步,从节点接收分区信息并处理
    @Bean
    @Profile({"slave","mixed"})
    @ServiceActivator(inputChannel = "inboundRequests", outputChannel = "outboundStaging")
    public StepExecutionRequestHandler stepExecutionRequestHandler() {
        StepExecutionRequestHandler stepExecutionRequestHandler = new StepExecutionRequestHandler();
        BeanFactoryStepLocator stepLocator = new BeanFactoryStepLocator();
        stepLocator.setBeanFactory(this.applicationContext);
        stepExecutionRequestHandler.setStepLocator(stepLocator);
        stepExecutionRequestHandler.setJobExplorer(this.jobExplorer);
        return stepExecutionRequestHandler;
    }
    @Bean("slaveStep")
    public Step slaveStep(MyProcessorItem processorItem,
                          JpaPagingItemReader reader) {
        CompositeItemProcessor itemProcessor = new CompositeItemProcessor();
        List<ItemProcessor> processorList = new ArrayList<>();
        processorList.add(processorItem);
        itemProcessor.setDelegates(processorList);
        return stepBuilderFactory.get("slaveStep")
                .<Article, Article>chunk(1000)//事务提交批次
                .reader(reader)
                .processor(itemProcessor)
                .writer(new PrintWriterItem())
                .build();
    }
从节点最关键的地方在于StepExecutionRequestHandler,他会接收MQ消息中间件中的消息,并从分区信息中获取到需要处理的数据边界,如下ItemReader:
    @Bean(destroyMethod = "")
    @StepScope
    public JpaPagingItemReader<Article> jpaPagingItemReader(
            @Value("#{stepExecutionContext['minValue']}") Long minValue,
            @Value("#{stepExecutionContext['maxValue']}") Long maxValue) {
        System.err.println("接收到分片参数["+minValue+"->"+maxValue+"]");
        JpaPagingItemReader<Article> reader = new JpaPagingItemReader<>();
        JpaNativeQueryProvider queryProvider = new JpaNativeQueryProvider<>();
        String sql = "select * from kl_article where  arcid >= :minValue and arcid <= :maxValue";
        queryProvider.setSqlQuery(sql);
        queryProvider.setEntityClass(Article.class);
        reader.setQueryProvider(queryProvider);
        Map queryParames= new HashMap();
        queryParames.put("minValue",minValue);
        queryParames.put("maxValue",maxValue);
        reader.setParameterValues(queryParames);
        reader.setEntityManagerFactory(entityManagerFactory);
        return  reader;
    }
中的minValuemin,maxValue,正是前文中Master节点分区中设置的值

文末总结

如上,已经完成了整个spring batch 远程分区处理的实例,需要注意的是,一个实例,即可主可从可主从,是有spring profile来控制的,细心的人可能会发现@Profile({"master", "mixed"})等注解,所以如果你在测试的时候,别忘了在spring boot中配置好spring.profiles.active=slave等
